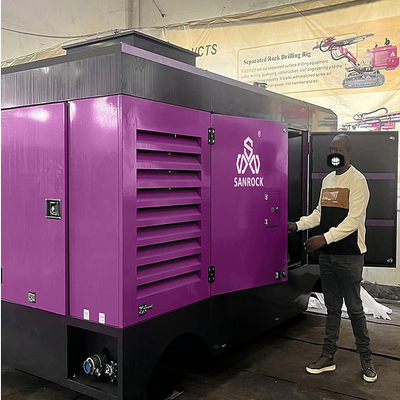

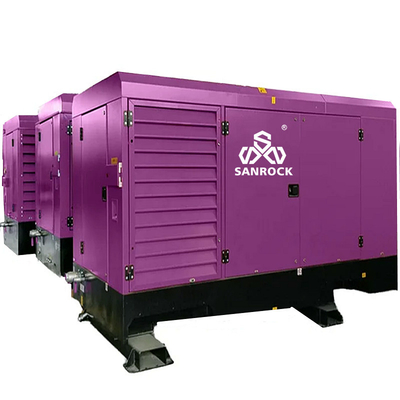

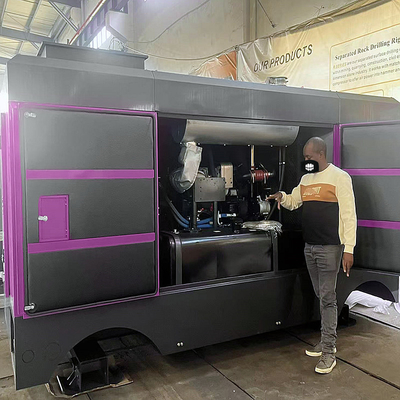

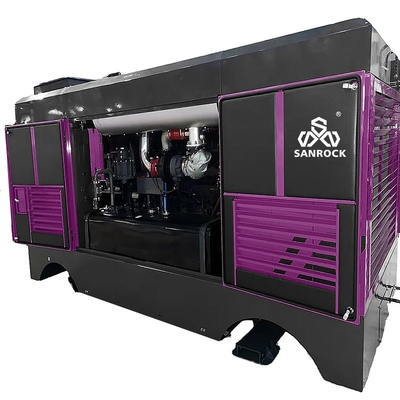

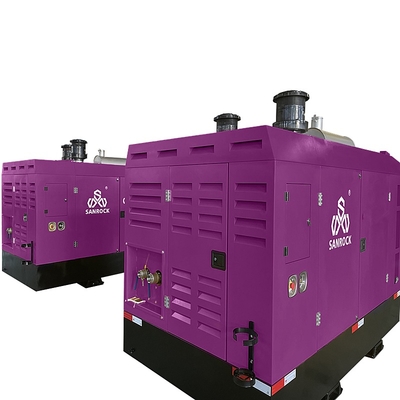

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor

1 set/set
MOQ
negotiable
prezzo
Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Nome del prodotto: Compressore d'aria a vite, macchina di compressione d'aria
Nome: Compressore d'aria diesel della vite
Potenza: 410 kW
Fonte di alimentazione: Diesel
Pressione: 21-25bar/21-34bar
Consumo d'aria: 31-29 m2/min 36,5-32 m2/min
Velocità: 1600/1400 giri al minuto 1830/1400 giri al minuto
Capacità del serbatoio: 700L
Capacità dell'olio lubrificante: 120L
Metodo di raffreddamento: Sia aria/raffreddamento ad acqua disponibile
Applicazione: Progetto minerario, carbone, minerale
Tipo: - Non lo so.
Componenti fondamentali: PLC, recipiente a pressione, motore, motore, pompa, cuscinetto
Configurazione: Fabbricazione
Dimensione ((l*w*h): 4100*1800*2050mm
Peso: 5600kg
Evidenziare:

Diesel Screw Air Compressor

,

Rotary Screw Air Compressor

,

Rotary Screw Drive Air Compressor

Informazioni di base
Luogo di origine: Zhejiang, Cina
Marca: SANROCK
Certificazione: CE ISO 9001:2015
Numero di modello: Personalizzato
Termini di pagamento e spedizione
Imballaggi particolari: Pacchetto nudo per macchine, pacchetto di scatola di legno per ricambi, o richieste dei clienti.
Tempi di consegna: 18-25 giorni lavorativi
Termini di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione: 5000 set/set al mese
Descrizione di prodotto

screw air compressor used with water well drilling rig
This specialized rotary screw air compressor is engineered to deliver high-efficiency compressed air supply for water well drilling operations.
Featuring robust twin-screw technology, to power down-the-hole hammers and rotary drilling systems. superior cooling and lubrication for extended duty cycles in harsh drilling environments.
Integrated with vibration-resistant components and heavy-duty filtration systems, this compressor maintains high performance under dust and high-temperature conditions.
Automatic load/unload controls and energy-saving VFD options enhance fuel efficiency for mobile drilling rig configurations. With protection rating and corrosion-resistant coatings, it meets rigorous drilling industry standards for reliability in borewell construction and geothermal drilling applications.

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 0Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 1

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 2

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 3



Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 4Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 5

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 6Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 7

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 8

Products Description

Brand Name:Sanrock
Product name: screw air compressor
Compressor
Pressure (bar)
21-25 21-34
Air consumption (m²/min)
31-29 36.5-32
Lubricating oil capacity(L)
120
Dual transformation
Dual
Engine
brand
Cummins
Mode
QSZ 13-C550
Power (kw)
410
Max working/idle speed (rpm
1600/1400 1830/1400
Cylinder No
6
Total displacement(L)
13
Emission standard
Stage Ⅲ
Fuel tank capacity (L)
700
Unit
xhaust port specifications *Quant
G2*1&G3/4*1
Wheel specifications *Quantity
Skid mounted
Noise[Db(A)]
85±3
Dimension (mm
4100x1800x2050
Weight (kg)
5600


Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 9

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 10Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 11Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 12
Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 13Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 14





Company Profile

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 15

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 16

Skid Mounted Screw Air Compressor Diesel Engine Rotary Screw Drive Air Compressor 17

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.



2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.



3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
