Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine

1Set/Set al mese
MOQ
negotiable
prezzo
Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Nome del prodotto: Impianto di perforazione
nome: PIATTAFORMA DI PRODUZIONE DELLA ROCCIA
Applicazione: Progetto minerario, carbone, minerale, acqua
Caratteristica: Controllo idraulico, efficienza di perforazione elevata leggera
Diametro di perforazione: 50-80mm
Profondità di perforazione: 35m
Modello dello stinco: φ38mmx90mm
Garanzia: 6 mesi
Forza di impatto: ≥225J
Frequenza di impatto: ≥34Hz
Coppia di uscita dell'asta di perforazione: ≥140NM
Dimensioni del tunnel praticabili: 2,2mx 2,2 m - 3.0mx 3.0m
Consumo totale d'aria: ≤225l/s
Angoli di perforazione: 0-360 gradi
Servizio post-vendita fornito: Supporto online, supporto tecnico video
Peso: 95 kg
Evidenziare:

Portable tunnel drilling rig

,

Hydraulic drilling rig equipment

,

Pneumatic bucket drilling machine
Informazioni di base
Luogo di origine: Zhejiang, Cina
Marca: SANROCK
Certificazione: CE ISO 9001:2015
Numero di modello: SR90
Termini di pagamento e spedizione
Imballaggi particolari: Pacchetto nudo per macchine, pacchetto in legno per pezzi di ricambio o domanda di clienti.
Tempi di consegna: 15-25 giorni
Termini di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione: 5000set/set al mese
Descrizione di prodotto

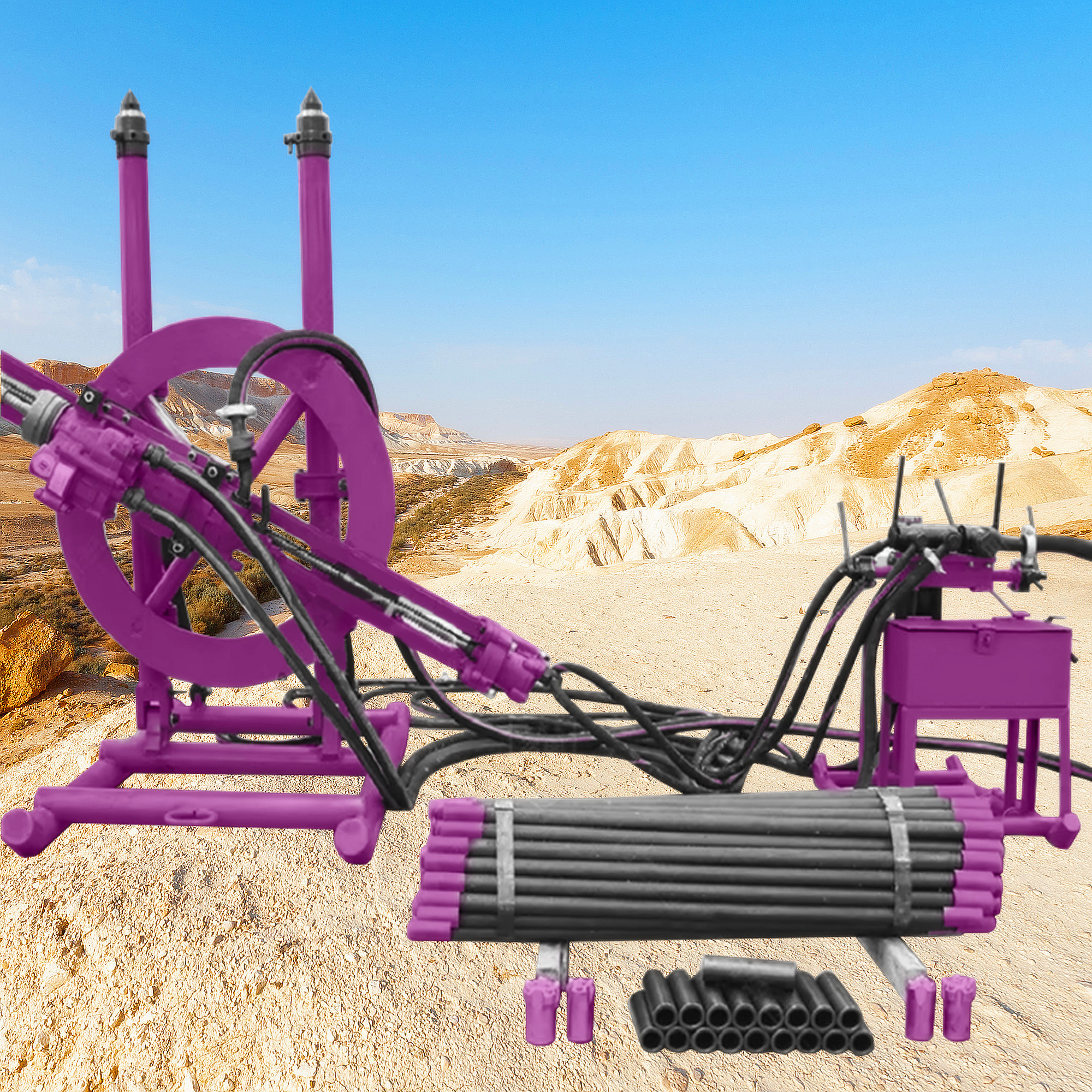

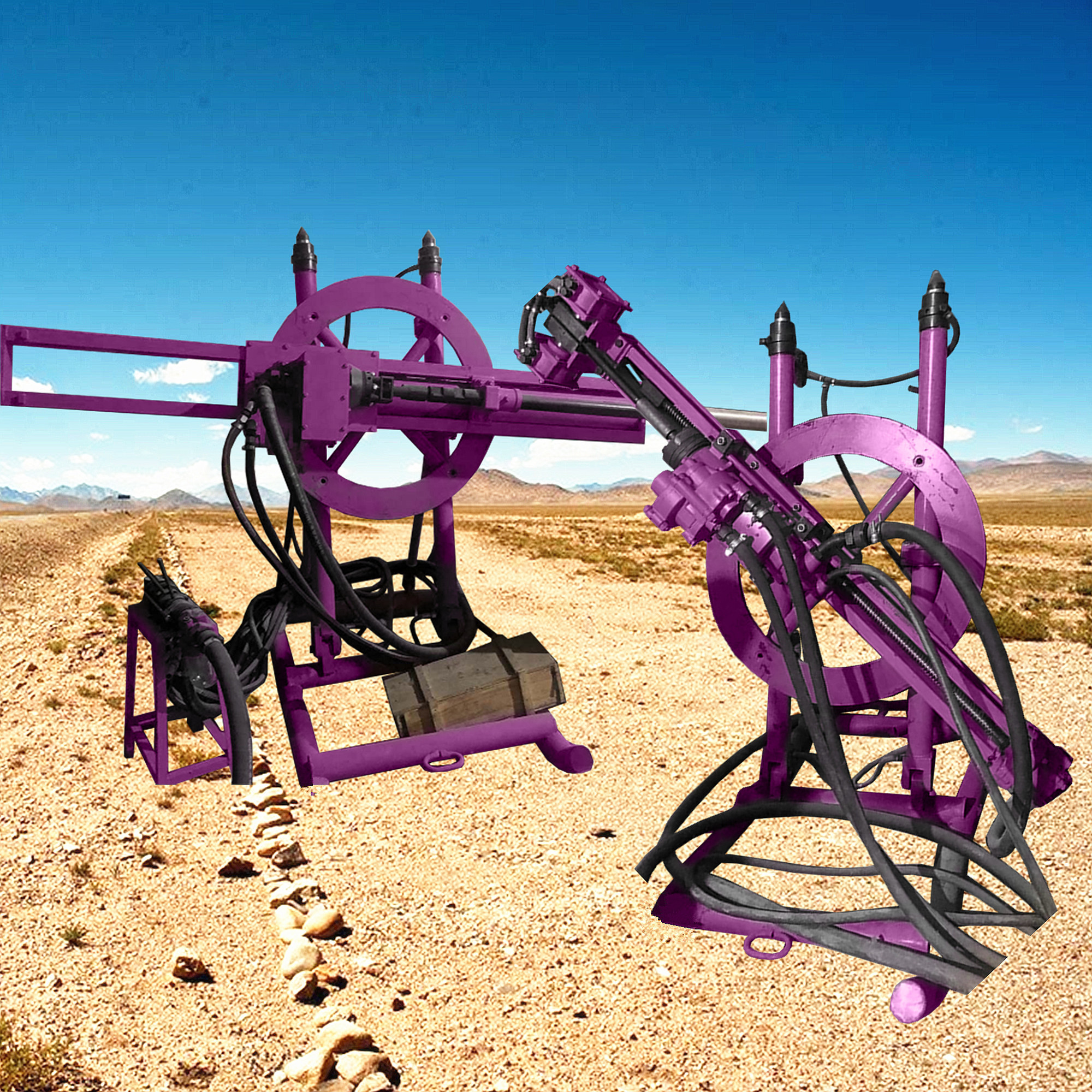

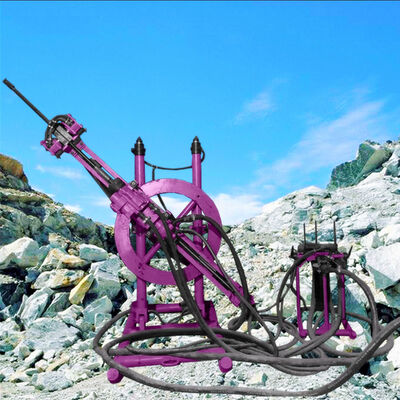

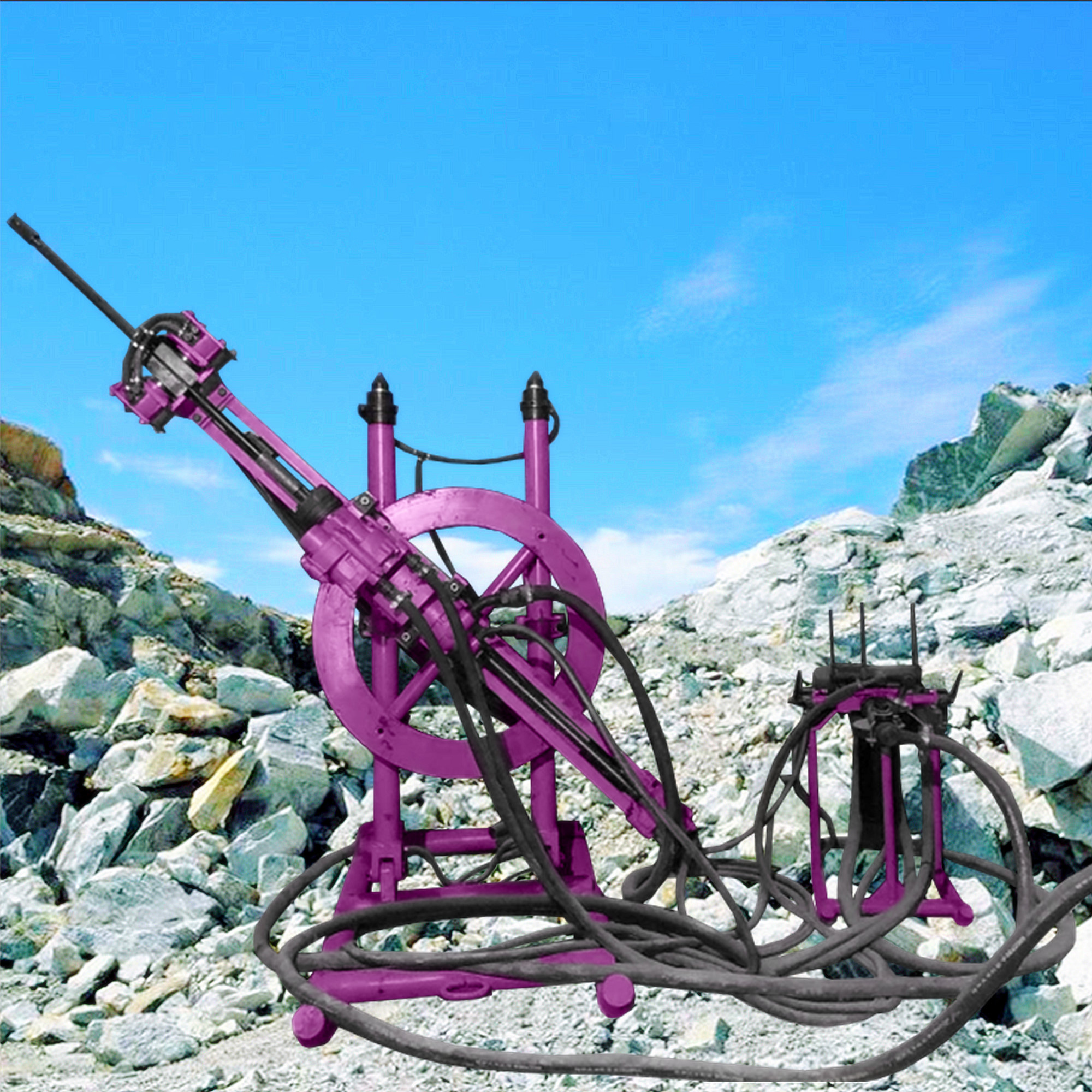

Tunnel Turntable Rock Pneumatic Impactor Drilling Machine
The pneumatic rock drilling machine of the disc drill frame is powered by compressed air, and is mainly used for fan-shaped or annular medium-depth blastholes in underground mining fields, and can also be used for underground bolts support.
Turntable rocks drilling machine is a medium and deep hole rock drilling tool powered by compressed air. The medium-deep hole rock drilling equipment powered by compressed air is mainly used for the stonework engineering of the upward fan-shaped or annular medium-deep hole drilling in the underground mining field. It is suitable for drilling with a diameter of 50-80mm and a drilling depth of 30m. Using a cross-shaped alloy drill bit with a diameter of 65mm, the average pure rock drilling speed can reach 680mm/min in F12-14 grade ore. The drill frame is simple in structure, easy to dismantle and transport, and works well.
The sizes of different models of turntables are suitable for 2.2mx2.2m-2.7mx2.7m / 2.5mx2.5m-3.0mx3.0m

Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 0

Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 1Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 2

Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 3

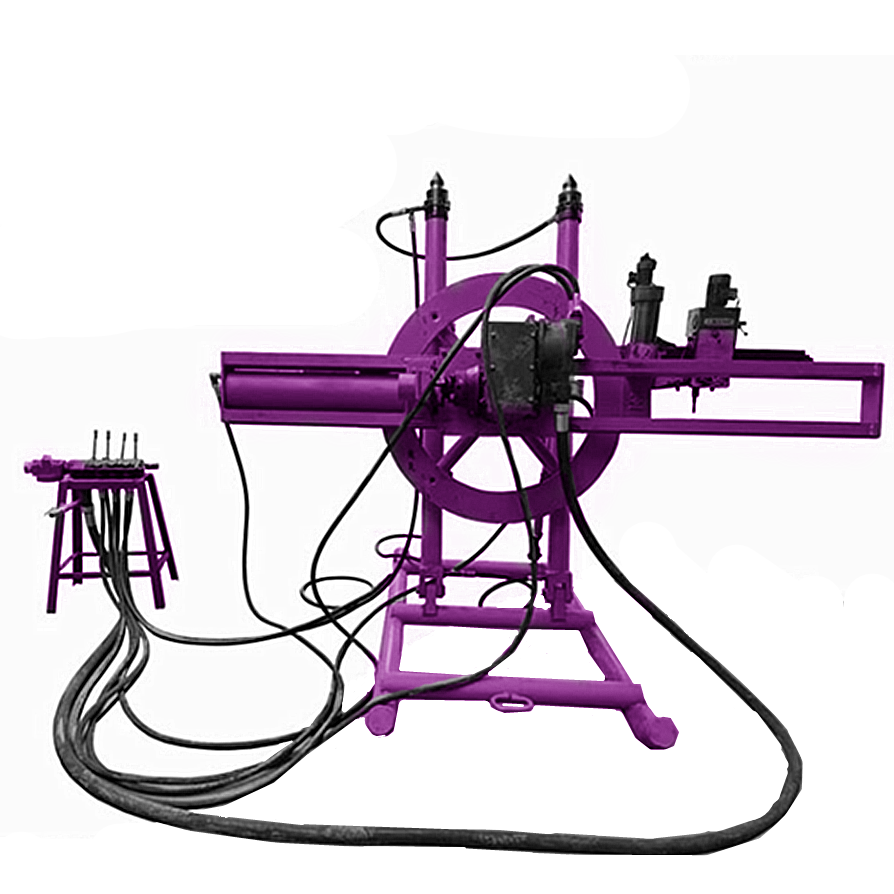

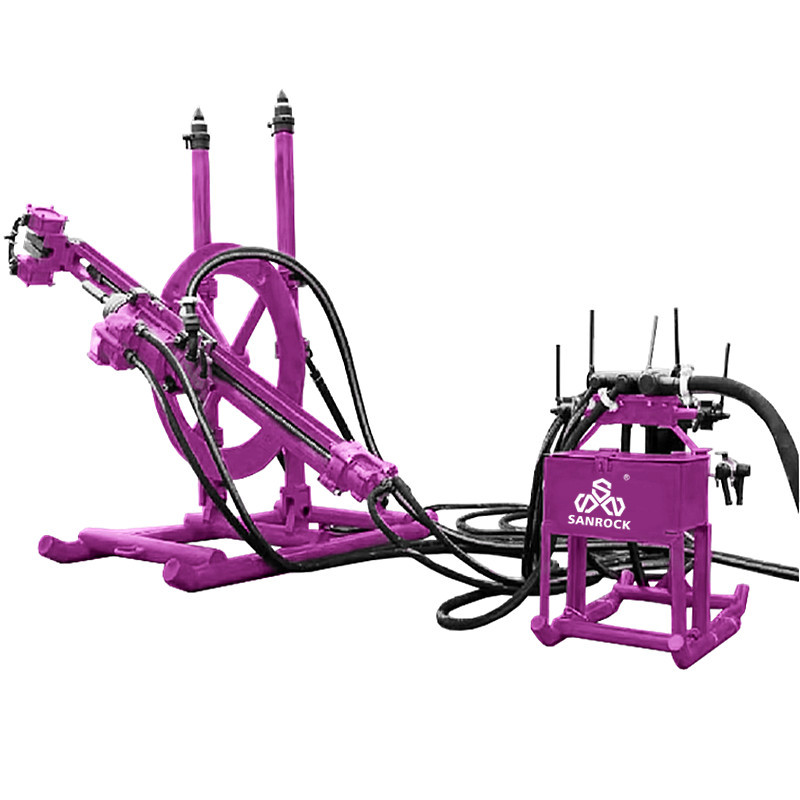

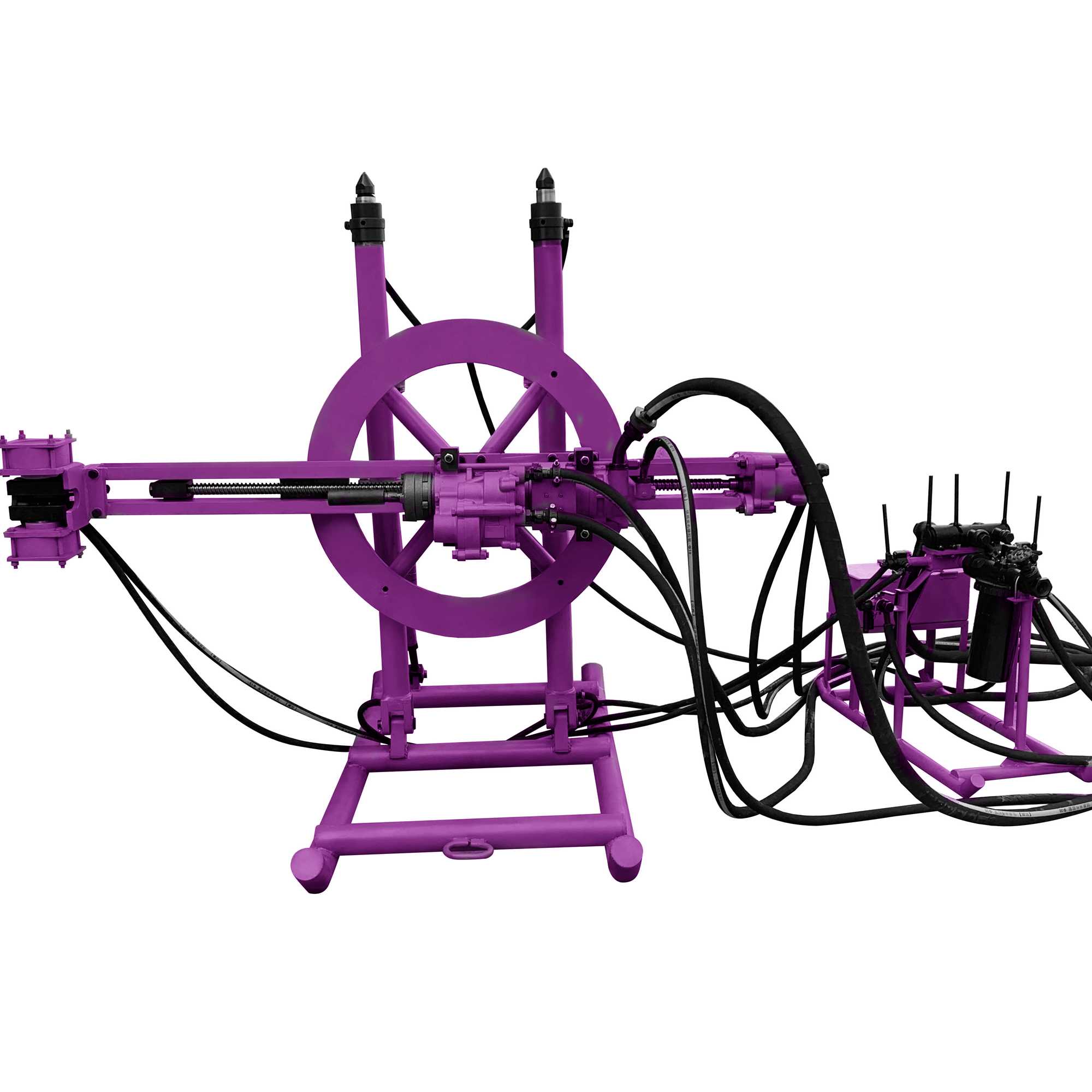

Structural Features This drill frame has a simple structure, is easy to disassemble and transport, operates safely and reliably, and is highly efficient. The entire drilling frame is composed of three components: the drilling frame connection part, the propeller connection part and the operation platform connection part. The drilling frame connection part mainly includes three parts: the air top, the disc and the bottom skid. The propeller joint is composed of four components: the brazing device, the guide rail, the slide seat and the propulsion motor. The console assembly includes main components such as the control valve and the oil mist lubricator.
It is suitable for drilling with a diameter of 50-80mm and a drilling depth of 35m. The drill frame is simple in structure, easy to dismantle and transport, and works well.
Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 4Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 5



Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 6



Products Description

Type
Rotary Drilling Rig
Product name
Drilling Rig
Applicable
Building Energy ,Mining,borehole drilling rig
Parameters
Model SR90
Model SR150
Drilling Hole Diameter
50-80mm
80-140mm
Max. Drilling Hole Depth
35m
180m
Shank Model
φ38mmx90mm

Impact Force
≥225J
15000N
Impact Frequency
≥34HZ
60rpm
Output Torque of Drill Rod
≥140NM
1500-2000NM
Workable Tunnel Dimensions
2.2m x 2.2m - 3.0m x 3.0m
2.2m x 2.2m - 3.0m x 3.0m
Total Air Consumption
≤225L/s
120-350L/s
Drilling Angles
0-360 degrees
0-360 degrees
Mounted
No (Man Portable)
Two Wheels Trailer
Weight for Rocks Drilling Machine
95KG
450KG
Dimensions for Rocks Drilling Machine
890x360x305mm

Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 7







Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 8Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 9Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 10

Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 11Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 12Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 13

Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 14Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 15



Company Profile

Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 16

Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 17

Portable Drilling Rig Equipment Tunnel Hydraulic Drilling Rig Pneumatic Drilling Machine 17

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.


2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
