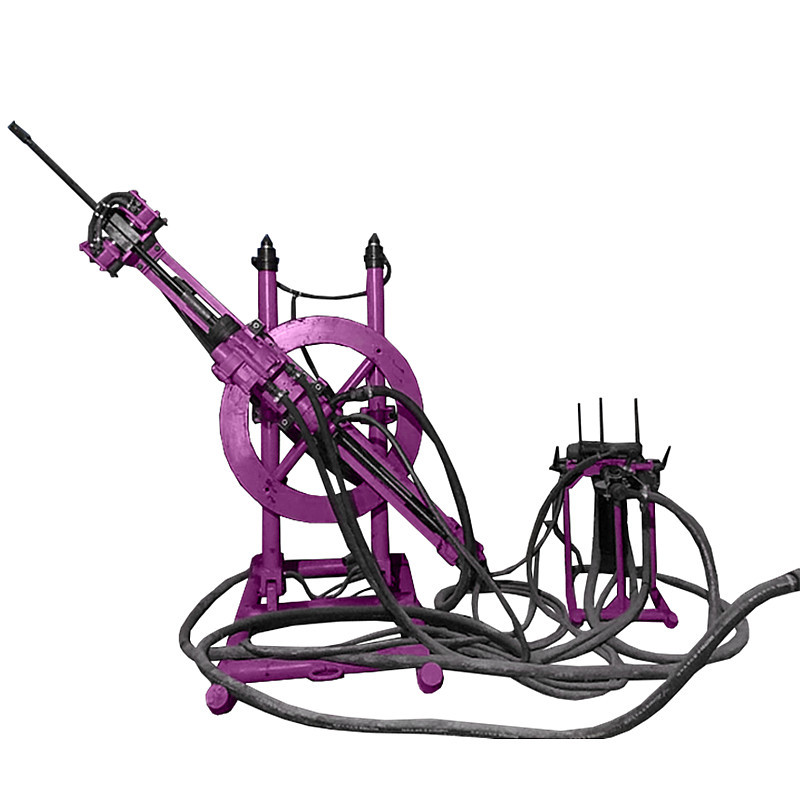

This horizontal directional drilling rig combines disc-type structural stability with advanced
horizontal directional drilling technology, specifically engineered for precision tunneling and
pipeline installation projects. Equipped with a high-frequency DTH hammer ≥34HZ and 80mm
maximum bore diameter capacity, it achieves exceptional performance in hard rock formations
at depths up to 35-40 meters.
The sizes of different models of turntables are suitable for 2.2mx2.2m-2.7mx2.7m / 2.5mx2.5m-3.0mx3.0m
After the drill frame parts are transported to the working point, they should be assembled
in the order of the bottom crowbar, air top, disc and propeller. Each part should be cleaned
and wiped clean, coated with grease and tightened. Before the main air inlet and water pipes
are connected to the control console, all the sand and mud should be blown clean.
All the hoses must also be blown clean before being connected to the corresponding parts of
the drill frame to prevent sand and mud and other dirt from entering the machine parts.
Products Description
|
Type
|
Rotary Drilling Rig
|
|
Product name
|
Drilling Rig
|
|
Applicable
|
Building Energy ,Mining,borehole drilling rig
|
|
|
Parameters
|
Model SR90
|
Model SR150
|
|
Drilling Hole Diameter
|
50-80mm
|
80-140mm
|
|
Max. Drilling Hole Depth
|
35m
|
180m
|
|
Shank Model
|
φ38mmx90mm
|
|
|
Impact Force
|
≥225J
|
15000N
|
|
Impact Frequency
|
≥34HZ
|
60rpm
|
|
Output Torque of Drill Rod
|
≥140NM
|
1500-2000NM
|
|
Workable Tunnel Dimensions
|
2.2m x 2.2m - 3.0m x 3.0m
|
2.2m x 2.2m - 3.0m x 3.0m
|
|
Total Air Consumption
|
≤225L/s
|
120-350L/s
|
|
Drilling Angles
|
0-360 degrees
|
0-360 degrees
|
|
Mounted
|
No (Man Portable)
|
Two Wheels Trailer
|
|
Weight for Rocks Drilling Machine
|
95KG
|
450KG
|
|
Dimensions for Rocks Drilling Machine
|
890x360x305mm
|
|
