Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig

1Set/Set al mese
MOQ
negotiable
prezzo
Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Nome del prodotto: impianto di perforazione idraulica del nucleo
Nome: Perforazione di pozzi,perforazione di nuclei
tipo: Piattaforma di trivellazione del nucleo
Utilizzo: campione di pozzo d'acqua.
Caratteristica: Alta efficienza di perforazione, portatile, leggero peso
Applicazione: Esplorazione geologica
Energia: 16.2kw
Velocità nominale: 2200R/min
Diametro di foratura: 75-325mm
Profondità di perforazione: 200 metri
Diametro dell'asta di trivellazione: 42-60 mm
Dimensione (l*w*h): 2700*900*1500 mm
Servizio post-vendita fornito: Supporto in linea
Peso massimo di sollevamento dell'albero verticale: 25KN
Pressione massima di alimentazione dell'albero verticale:: 15kn
Coppia massima in uscita dell'albero verticale: 15kn
Velocità dell'albero verticale (4a marcia): 71.142.310.620 giri/min
Corsa verticale dell'albero: 450 mm
Angolo di inclinazione del foro: 90-75°
Diametro del foro finale: 75 mm
Confezione singola: 2150×880×1560mm
Peso Lordo Singolo: 760 kg
Evidenziare:

hydraulic core drilling rig 100m

,

mining core drilling rig 200m

,

exploration drilling equipment hydraulic
Informazioni di base
Luogo di origine: Zhejiang, Cina
Marca: SANROCK
Certificazione: CE ISO 9001:2015
Numero di modello: SRC200
Termini di pagamento e spedizione
Imballaggi particolari: Pacchetto nudo per macchine, pacchetto scatola di legno per pezzi di ricambio o richiesta del client
Tempi di consegna: 15-25 giorni
Termini di pagamento: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di alimentazione: 5000set/set al mese
Descrizione di prodotto

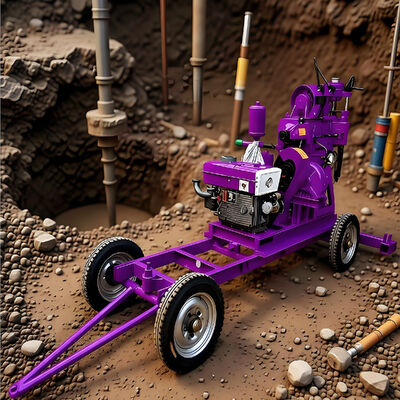

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 0

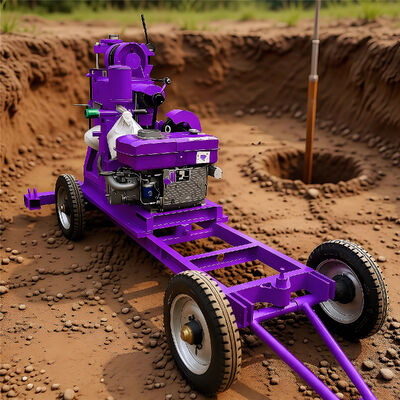

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 1

Mining Exploration Geological Core Drilling Rig – 200m Depth
This heavy-duty core drilling rig is purpose-built for underground and open-pit mining exploration, geological surveying, and mineral resource evaluation, with a maximum drilling depth of 200 meters.

Engineered to withstand the harsh conditions of mine sites, the rig features a reinforced steel frame, dust- and moisture-resistant components, and a robust hydraulic system that ensures reliable operation in confined or rugged environments.
Equipped with a high-torque rotary head and precise feed control, it supports diamond core drilling (NQ, HQ, BQ) and delivers high-quality, undisturbed core samples for accurate geological analysis.

The compact modular design allows for easy transport through mine tunnels and quick setup at drilling locations. Safety features such as overload protection and emergency shut-off are integrated for operator protection.
Ideal for mineral prospecting, grade control, and geotechnical investigation in mining operations, this rig combines field-proven durability, efficient coring performance, and a 200-meter depth capability tailored to the demands of the mining industry.

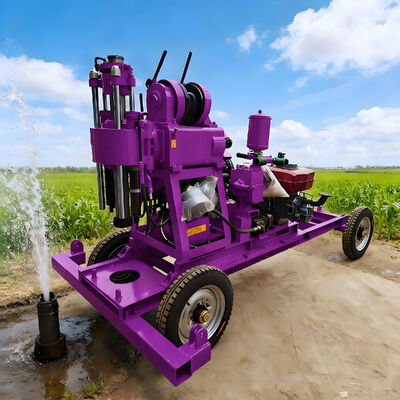

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 2

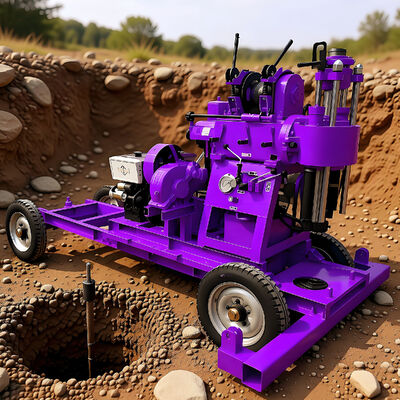

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 3

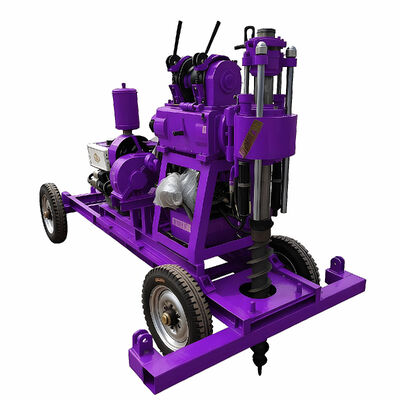

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 4

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 5

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 6

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 7

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 8

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 9

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 10



Products Description

Brand Name:SANROCK
Product name :Core Drilling Rig

Name: Core Drilling Machine
Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight
Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 11

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 12

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 13

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 14

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 15

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 16

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 17

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 18

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 19

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 20

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 4

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 22

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 23


Company Profile

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 24

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 25

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 26


Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 27

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 28
